Stone Cage Wire Mesh River Protection Gabion Basket Galvanized Gabion Box
Galvanized Gabion Box Information:
Galvanized gabion box is similar with gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
1. Materials:
(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.
(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.
(3) coated galvanized steel wire: low carbon steel wire, pvc coated.
2. Weaving: Normal twist, reverse twist, two-way twist, first after plating, first after knitting
3. Application: Control and guide rivers and floods; Flood discharge dam and diversion dam; Rockfall protection; Preventing water adnd soil erosion; Bridge protection; Soild Soil structure; Costal Denfece; Port Works; Retaining Wall, Road Protection.
Galvanized Gabion Box specificaiton:
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
Galvanized Gabion Box Package:
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
Product Tags:
|
|

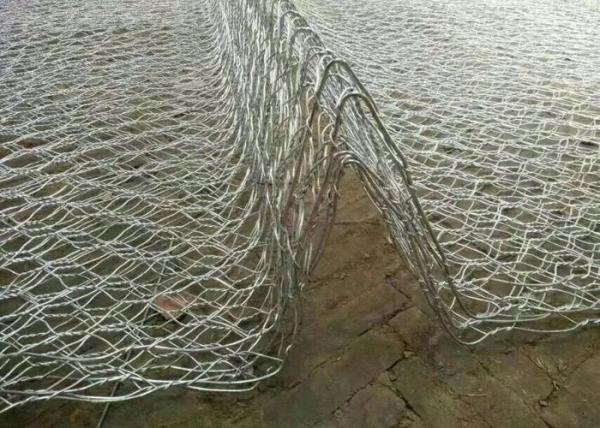

River Protection Reverse Twist 3.5mm Galvanized Gabion Box Images
|
